Pergola retractable roof
Totally protect yourself from the sun or treat yourself to an open-air terrace?
Retractable roof pergola: the aluminium slats of the Horizon 4 pergola can be retracted as you wish to take full advantage of the sunshine on your terrace. It offers the widest slat width in the range, up to 5 metres wide. Its design therefore offers an advantage over non-retractable systems (fixed pergolas) by allowing the terrace to be uncovered when required. A true retractable roof pergola with accordion slats to enjoy total sun protection and continue to enjoy your terrace during inclement weather.
An open-air terrace?
This is what the Horizon 4 retractable roof pergola offers you. Up to 80% openness to the sky when the slats are folded. You can then enjoy the starry sky and the sun. This opening of the slats preserves the brightness inside in autumn or winter when the sun’s rays are beneficial.
Retractable roof pergola: great width and protection
Its extruded aluminium structure provides long-lasting weather and UV resistance and a very large protective surface area. Ideal for increasing the m2 of your restaurant or covering your XXL terrace: one module = 25m2. Sun or rain, whatever the weather conditions your terrace remains comfortable.
Accessorise your pergola!
Based on a horizontal aluminium structure, like all our Horizon adjustable slat pergolas, you can add accessories and options. Add the sliding 115 enclosure on the sides for added privacy or protection from a slight breeze (see all the enclosure options). When evening comes, you can remote control the light under the pergola with an LED strip running along three sides.
More information
Download the brochure Pergola Horizon 4
Plus de documents pour nos clients enregistrés.
Connectez-vous
Plus de documents pour nos clients enregistrés.
Connectez-vous
-

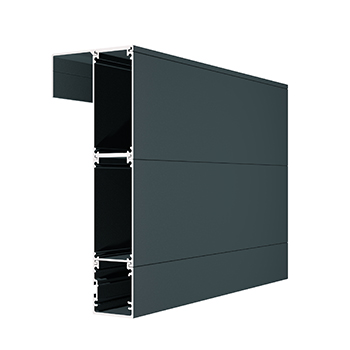

- Coffre pergola H4
-

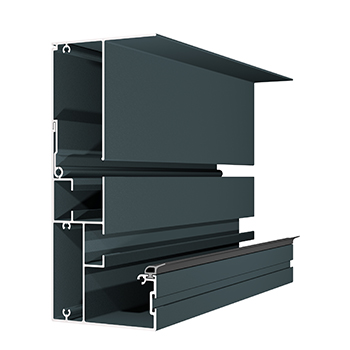

- Section poutre H4
-
- Section coffre avant
-

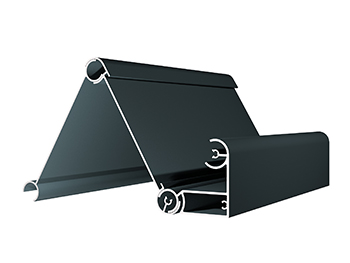

- Accordion slats Horizon 4
Opening accordion slats
Minimum footprint
Total closure
- New concept
- All-aluminium retractable roof (future-proof…)
- Large surface area module (25m²)
- The widest blade width in the range (5m)
- Water drainage blade > rafter > posts.
- Folded blades allow an opening of 4m over 5m of overhang.
- Optimum roof opening
- Tubular motor operation with toothed belts
- Option LED, Claustra and sliding box
.
Space requirement for retracted slats, 90 cm.
Maximum dimensions, 5 metres wide and 5.21 overhang
Two modules
Assembly
simplified
Standard Ral
RAL 7016 ANTHRACITE Teflon coated or RAL 9010 Glossy lacquer
Height of posts
2.50m as standard (3m max)
Materials
Aluminum and stainless steel A2 screws
Evacuation
Openings made on each post
LED option
On front cassette or three sides
Maximum projection
5.21 meters
Dimension of closed slats
20% of the projection
Manoeuvre
tubular motor with toothed belt
Download the brochure Pergola Horizon 4
Voir communiqué de presse (French): PERGOLA Horizon IVTOITURE RECTRACTABLENOUVELLE PERGOLA CHEZ MITJAVILA
Plus de documents pour nos clients enregistrés.
Connectez-vous
Plus de documents pour nos clients enregistrés.
Connectez-vous
Horizon 4 in a nutshell
- Folding (retractable)roof
- Optimum roof opening
- Simplified assembly
- Tubular motor operation
with toothed belts
”All our tables are protected from the sun but also from the rain when necessary.
Joël B.
Discover some beautiful projects of pergolas Horizon 4 made by our customers
Want an interior that extends outside… 😍 The Horizon 4 pergola with retractable accordion slats is versatile and stylish.
The garden furniture is sheltered, sun or rain… and you can open the roof completely to enjoy the sun or a starry sky.
Directed by itzalki toldoak (Spain )
A cosy terrace with this totally waterproof Horizon 4 pergola. The glass walls added for protection from the elements and wind make it even cosier in bad weather. No doubt the green plants will also love it here and enjoy the shade of the pergola.
Produced by Toldos Laiz
This Horizon 4 pergola blends ideally with the claustras on the facade of the modern building. The screen fabric was chosen in the same shade as the latter for perfect integration.
No doubt that slats retracted or deployed during inclement weather 🌧, residents will be able to enjoy their terrace to the max!
Directed by Toldos Laiz (Santander – Spain )
Two Horizon 4 pergola modules to cover this wide terrace. Once the slats are retracted, light floods into the flat. When deployed, this retractable roof also allows the occupants and their guests to enjoy greater privacy.
Ideal for protection from the elements and enjoying the wooden terrace all year round. As well as providing sun protection for the owners, the wooden terrace will be protected from UV rays and rain. It will retain its “new” appearance for many years.
Produced by Toldos Bioclima (Page Facebook Toldos Bioclima )
Last realization video
Looking for solutions to dress your pergola or other pergolas? This might interest you…
You’re looking for a cladding for your pergola. You can opt for a zip screen, crystal screen or claustra. Our solutions fit all our horizontal structure pergolas (bioclimatic pergolas, Top Lucia pergola…).
